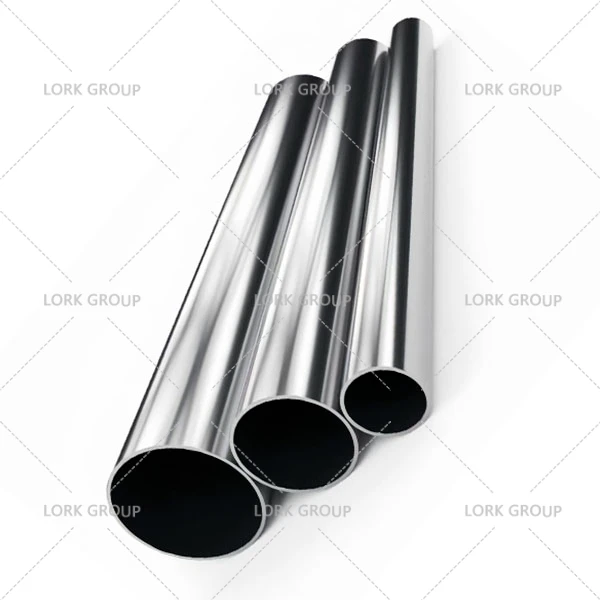

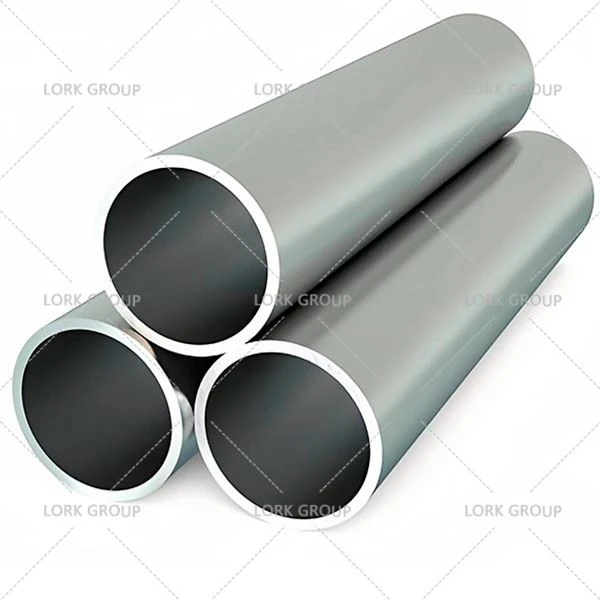

AISI 304 304L Stainless Steel Pipe
Products Description
Lork Group is a leading supplier and exporter of AISI 304/304L pipes and tubes. Stainless Steel Pipe 304/304L is a tubular product made from 304/304L Stainless Steel Alloy.
304/304L Stainless Steel Alloy offers excellent mechanical properties and high resistance to many corrosive agents. It is ideal for applications where sanitation and cleanliness are critical. This alloy is non-magnetic in the annealed condition. While cold working can increase hardness and tensile strength, the lowered carbon content ensures strong corrosion resistance in welded constructions where subsequent heat treatment is impractical.
Grade 304L (L = low carbon) has the same properties as 304 but with an ultra-low carbon composition. This prevents harmful precipitation in the 800°F to 1500°F range, which could otherwise occur when welding thicker sections.
Specification
|
Type |
Cold Drawn / Welded / ERW |
|
Outer Diameter Size |
Seamless - 1/4" NB to 6" NB (Nominal Bore Size) |
|
Wall Thickness |
Schedule 10 to Schedule 160 |
|
Length |
5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length, and Customized Size. |
|
Ends |
Plain Ends / Beveled Ends |
|
Delivery Conditions |
As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
|
Coating |
Electropolish, Mechanical Polish, Satin Finish, Passivated |
|
Other Testing |
NACE MRO175, Hardness Test, Flare, Hydrostatic Test, Eddy Current Test, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved, etc. |
|
Dimension |
All pipes are manufactured and Inspected / Tested to the Relevant standards, including ASTM and ASME |
|
Value Added Services |
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
|
Packaging |
Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition
|
Weight % |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
|
304 |
.08 |
2.00 |
.045 |
.030 |
1.00 |
18.0-20.0 |
8.0-11.0 |
|
304L |
.035 |
2.00 |
.045 |
.030 |
1.00 |
18.0-20.0 |
8.0-13.0 |
Mechanical Properties
|
Grade |
Tensile |
||||
|
Ultimate/Min |
Yield/Min |
Elongation/Min |
|||
|
KSI |
MPA |
KSI |
MPA |
% |
|
|
304 |
75 |
515 |
30 |
205 |
35 |
|
304L |
70 |
485 |
25 |
170 |
35 |
Application
- Architectural Paneling
- Bolts
- Cutlery & Flatware
- Food & Pharmaceutical Production Equipment
- Nuts
- Sanitary Ware & Troughs
- Saucepans
- Screws
- Sinks & Splash Backs
- Spring
