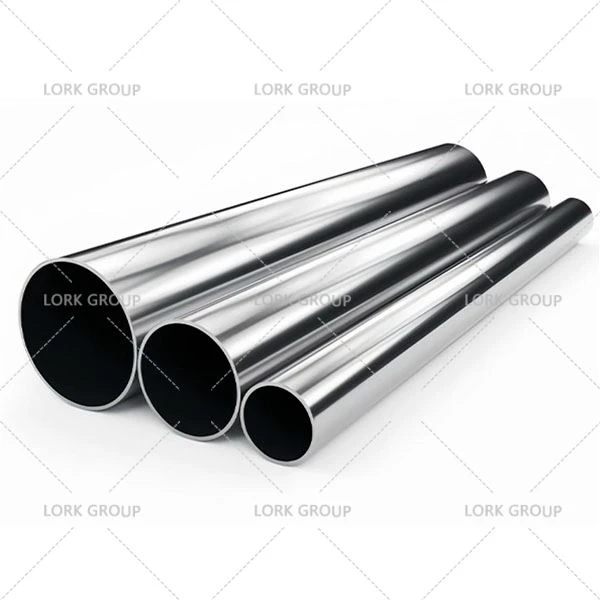

Haynes 230 Pipe
Haynes 230 pipe is a nickel-chromium-tungsten-molybdenum superalloy engineered to deliver exceptional high-temperature strength, oxidation resistance, and long-term thermal stability in extreme environments. Withstanding temperatures up to 2100°F (1149°C), this alloy outperforms conventional stainless steels and many nickel-based alloys, making it ideal for critical applications in aerospace, power generation, and industrial processing.
Properties & Advantages
- Outstanding High-Temperature Strength – Maintains structural integrity at 1200°F (649°C) and above, with superior creep resistance compared to stainless steels.
- Exceptional Oxidation & Nitridation Resistance – Forms a protective oxide layer, preventing degradation in aggressive atmospheres.
- Thermal Stability & Fatigue Resistance – Performs reliably under prolonged thermal cycling without embrittlement.
- Good Fabricability & Weldability – Can be welded without preheating or post-weld heat treatment (interpass temp <100°C).
- Resistance to Carburization & Nitridation – Low carbon absorption (10.3 mg/cm² in carburizing tests at 1090°C) and excellent ammonia resistance.
Specification
|
Type |
Cold Drawn / Welded / ERW |
|
Outer Diameter Size |
Seamless - 1/4" NB to 6" NB (Nominal Bore Size) |
|
Wall Thickness |
Schedule 10 to Schedule 160 |
|
Length |
5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
|
Ends |
Plain Ends / Beveled Ends |
|
Delivery Conditions |
As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
|
Coating |
Electropolish, Mechanical Polish, Satin Finish, Passivated |
|
Other Testing |
NACE MRO175, Hardness Test, Flare, Hydrostatic Test, Eddy Current test, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved etc. |
|
Dimension |
All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
|
Value Added Services |
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
|
Packaging |
Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition
|
Element |
Content (%) |
|
Nickel, Ni |
56.16-65.7 |
|
Chromium, Cr |
20-24 |
|
Tungsten, W |
13-15 |
|
Molybdenum, Mo |
1-3 |
|
Manganese, Mn |
1 |
|
Silicon, Si |
0.25-0.75 |
|
Carbon, C |
0.050-0.090 |
Mechanical Properties
|
Properties |
Metric |
Imperial |
|
Tensile strength |
485 MPa |
70300 psi |
|
Yield strength |
275 MPa |
39900 psi |
|
Elongation at break |
15.0 % |
15.0 % |
Applications of Haynes 230 Pipes & Tubes
- Due to its unmatched high-temperature performance, Haynes 230 is widely used in:
- Aerospace & Jet Engines – Combustors, afterburners, exhaust components
- Power Generation – Gas turbine liners, heat exchangers, boiler tubes
- Chemical Processing – Reformer tubes, furnace hardware, pyrolysis systems
- Heat Treatment & Industrial Furnaces – Radiant tubes, muffles, thermocouple protection sheaths
Fabrication & Welding Guidelines
- Welding Methods: Compatible with GTAW (TIG), GMAW (MIG), and SMAW techniques.
- Interpass Temperature: Must be kept below 100°C (212°F) to prevent cracking.
- Cold Forming: Possible but requires annealing for severe deformation.
- Machining: More challenging than stainless steel; carbide tooling is recommended.
Stock Availability & Custom Solutions
At Lork Group, we maintain a readily available stock of Haynes 230 pipes and tubes in common sizes to meet urgent project demands. Our expertise ensures:
✅ Fast delivery for time-sensitive applications
✅ Custom cutting, machining, and finishing services
✅ Technical support for material selection and fabrication
Manufacturing Process
Main Applications
Packaging & Shipping
FAQS
If you have any other questions, please contact me!
Q: Can you produce nickel alloy bars?
A: Yes, we can produce nickel alloy bars according to your requirements.
Q: What is your minimum order quantity?
A: Our minimum order quantity is 50 kg. Larger quantity, lower price.
Q: How long is your delivery time?
A: Generally delivery time for stock is 3 days, and customization takes 15 working days or more, but it is also affected by your specific requirements or order quantity.
Q: Can you provide samples?
A: For small parts, we can provide free sample of regular sizes, but the shipping costs will be borne by you. For large parts sample, we will include it in the order amount. Please confirm with our sales department for your specific requirements.
Q: How can l quickly get the price list?
A: Directly send us email with detailed specification, and you will get the official price list in 1 hour.
Q: How do you control product quality?
A: From the selection of raw materials to transportation packaging, every production process will be testing and evaluated. Only products that have passed all tests can be delivered for export.
Q: Can you provide processing services?
A: Yes, we also provide processing services to our customers. It is one of our goals to provide specialized services such as bending, water cutting, laser cutting, digging holes, welding, slitting of coils, and other fabrications according to the drawings.
