In microelectronics, optoelectronics, and integrated circuit (IC) packaging, chips (such as Silicon or GaAs) generate heat during operation. Packaging structures typically incorporate a variety of materials-including the chip itself, ceramics, glass, and metals-and differences in thermal expansion among these materials can induce thermal stress during both the packaging process and actual use. If the mismatch between the packaging material's coefficient of thermal expansion (CTE) and that of the chip is excessive, it can lead to severe thermal stress cracking, solder joint failure, or a loss of hermeticity.
We offer high-purity precision alloys-specifically Kovar (4J29) and Alloy 42 (4J42)-optimized for chip packaging and testing and widely used in modern semiconductor packaging:
A classic iron-nickel-cobalt (Fe-Ni-Co) ternary alloy. It features an expansion curve that matches exceptionally well with hard glass (such as Pyrex) and alumina ceramics (Al2O3) within the 20°C to 450°C range, making it the preferred choice for hermetic packaging in high-reliability military, aerospace, and optical communication applications.
An iron-nickel (Fe-Ni) binary controlled-expansion alloy. Its coefficient of thermal expansion closely matches that of single-crystal silicon chips at temperatures below 300°C. Combining high thermal conductivity with excellent stamping and bending properties, it serves as a cost-effective core material for traditional IC chip lead frames and plastic packaging (PDIP, SOIC, QFP).
Why do chip packages require low-expansion alloys?
During the chip packaging process, metal components must be joined with glass, ceramics, or other packaging materials. The process typically involves temperature fluctuations-such as heating and cooling-yet the coefficients of thermal expansion (CTE) of these different materials vary.
If the difference in thermal expansion between materials is excessive, temperature changes can generate significant interfacial stress; furthermore, long-term thermal cycling may compromise the reliability of the packaging structure.
The primary function of Kovar and Alloy 42 is to utilize their low coefficients of thermal expansion to achieve better expansion matching between the metal packaging materials and materials such as glass or ceramics within a specific temperature range.
Therefore, in the context of high-reliability electronic packaging, the use of low-expansion alloys is not intended merely to enhance material strength, but rather to control thermal stress and dimensional changes within the packaging structure.
Comparison of Key Performance Parameters
| Comparison dimension | Kovar alloy(4J29) | Alloy 42 (4J42) |
| Alloy system | Fe-Ni-Co (ternary) | Fe-Ni (binary) |
| Coefficient of thermal expansion | 4.6~5.2x10-6/K(20-400℃) | 4.0~4.7x10-6/K(Below 300°C) |
| Curie temperature | 435 °C | 380 °C |
| Thermal Conductivity | 17.3 W/m·K | 12.1 W/m·K |
| Compatible materials | Borosilicate hard glass, alumina ceramics | Soft glass, silicon |
| Hermeticity level | Up to 1×10⁻⁹ Pa·m³/s | Depends on the sealing process |
| Cost level | Higher (contains cobalt) | Lower (cobalt-free) |
| Recommended Package Type | Ceramic substrate bases, caps, TO-Cans, and hermetic housings for optoelectronic modules. | IC Chip Lead Frames and Tape-based Packaging |
Chemical Composition and Alloy Design Logic
Kovar Alloy: A Precision Blend of Nickel and Cobalt
Kovar alloy typically contains 28.5–29.5% nickel, 16.8–17.8% cobalt, and the balance iron. This composition is not arbitrary: nickel content determines the alloy's Curie temperature and the inflection point of its expansion curve, while cobalt adjusts the coefficient of thermal expansion (CTE) to match hard borosilicate glasses. Cobalt also raises the Curie temperature, allowing the alloy to maintain its low-expansion characteristics at higher temperatures.
Impurity control is equally critical. Carbon content must be kept below 0.03% to prevent carbide formation that could compromise sealing performance; levels of elements such as manganese and silicon are also strictly regulated. This precise compositional control is the foundation that enables Kovar to achieve "tailored expansion" properties.
Alloy 42: A Simple Yet Exceptional Binary System
Alloy 42 consists of 42% nickel and a balance of iron, with no cobalt content. The 42% nickel content stabilizes the thermal expansion coefficient at 4.0–5.0 × 10⁻⁶/℃ within the 20–300°C range, ensuring a good match with soft glass and silicon. It has a Curie temperature of approximately 330–360°C and a tensile strength of about 450–550 MPa in the annealed state; its good ductility makes it suitable for cold stamping and etching processes.
Although Alloy 42 has a simple composition, precise control of the nickel content remains vital. A deviation of just 1% in nickel content can alter the thermal expansion coefficient by 0.3–0.5 × 10⁻⁶/℃-a shift significant enough to impact the reliability of the seal.
Analysis of Application Scenarios
Kovar: The "Gold Standard" for Hermetic Packaging
Kovar is primarily used in high-reliability hermetic packaging applications. Components such as optical communication devices (laser and detector headers), MEMS sensor housings, microwave device packages, and electrode leads for vacuum electronic devices all rely on matched sealing between Kovar and hard borosilicate glass to ensure long-term hermeticity.
During the sealing process, the Kovar surface undergoes pre-oxidation to form a dense oxide layer that chemically wets and bonds with the molten glass; this ensures that the sealing interface does not experience excessive stress due to differential thermal expansion during rapid temperature fluctuations. With a mature sealing process and reliability proven by decades of engineering application, Kovar stands as the irreplaceable "gold standard" material in the field of hermetic packaging.

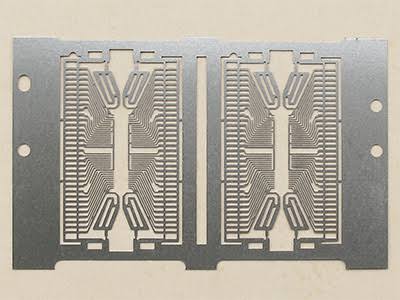

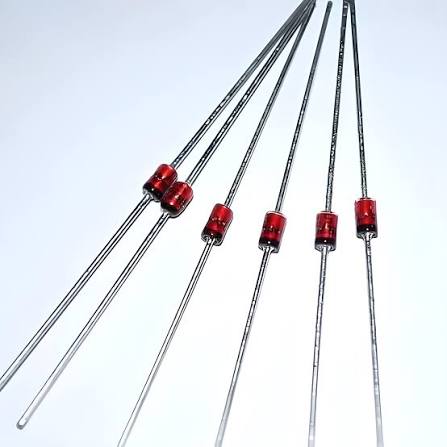

Alloy 42: Lead frames and soft glass sealing
Alloy 42 finds application in a diverse range of areas. In the field of lead frames, its coefficient of thermal expansion closely matches that of silicon, effectively reducing residual stress after chip mounting-making it particularly suitable for large-die packaging. In soft-glass sealing, Alloy 42 is compatible with soft glasses such as soda-lime glass, serving cost-sensitive packaging applications that do not require matching with hard glass. Additionally, Alloy 42 is utilized in applications requiring precise control of thermal expansion, such as bimetallic strips for thermostats.
Guide to Material Selection Decisions
Scenarios favoring Kovar alloy:
- Applications requiring high-hermeticity seals with borosilicate hard glass or alumina ceramics
- Optical communication devices, MEMS sensors, microwave components, and vacuum electronic devices
- Applications demanding extremely high sealing reliability and process maturity, where cost sensitivity is relatively low
Scenarios favoring Alloy 42:
- Packaging applications involving seals with soft glass
- Use as a lead frame substrate, particularly for large-format chips or applications requiring low-expansion constraints
- Cost-sensitive packaging applications that do not require matching with hard glass
- Applications requiring precise control of thermal expansion, such as bimetallic strips for thermostats
Summary recommendation: Kovar is a mature and reliable choice for applications demanding high hermeticity and compatibility with hard glass; Alloy 42 offers superior cost-effectiveness for lead frames or soft-glass sealing applications where cost is a primary concern. Both materials occupy indispensable niches within the semiconductor packaging ecosystem.
