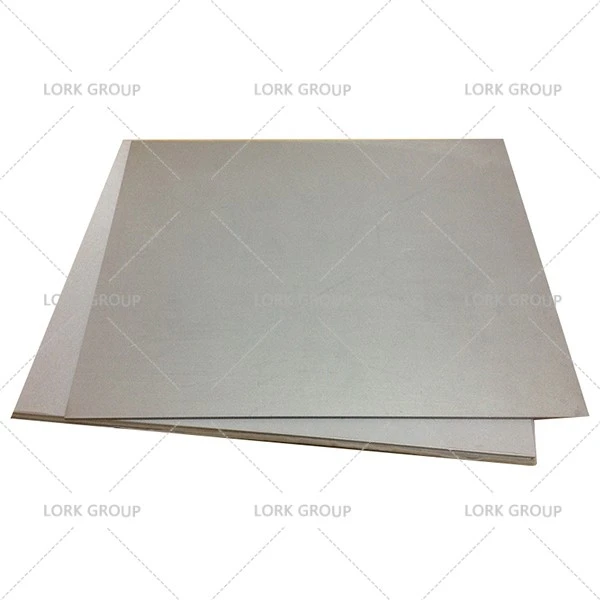

AMS 5870 / Inconel 601 Nickel Sheet
AMS 5870 governs the production and properties of Inconel 601 (UNS N06601) in the form of sheet, strip, and plate. This nickel-chromium-iron superalloy is engineered for exceptional oxidation and corrosion resistance, making it ideal for high-temperature structural applications in aerospace, chemical processing, and power generation industries.
Inconel 601's high chromium content (23%) and aluminum addition (1.4%) form a protective oxide layer that withstands temperatures up to 2200°F (1204°C), significantly outperforming many conventional nickel alloys. The material is available in solution heat-treated or annealed conditions, allowing optimization for either rupture-limited (high-temperature) or tensile-limited (lower-temperature) applications.
Key Properties & Metallurgical Advantages
1. Unmatched High-Temperature Performance
Oxidation resistance up to 2200°F (1204°C) due to a stable Cr₂O₃-Al₂O₃ surface layer.
Excellent creep resistance under prolonged thermal exposure, ideal for combustors, heat exchangers, and furnace components.
Low thermal expansion coefficient minimizes stress during thermal cycling.
2. Superior Corrosion Resistance
Resists chloride-induced stress corrosion cracking (SCC), sulfur compounds, and carburizing atmospheres.
Maintains integrity in oxidizing and reducing acids, including nitric, sulfuric, and phosphoric acid environments.
3. Mechanical Properties & Fabrication Benefits
Solution heat-treated condition (AMS 5870) optimizes rupture strength above 1000°F (540°C) for applications like gas turbine components.
Annealed condition provides superior formability and weldability for structural applications below 1000°F (540°C).
Excellent weldability via TIG, MIG, and resistance welding with minimal risk of hot cracking.
Chemical Composition
| Weight% | Ni | Cr | Fe | Al | C | Mn | S | Si | C |
| Alloy 601 | 58-63 | 21-25 | Rem | 1-1.7 | 0.10 max | 1.0 max | 0.015 max | 0.50 max | 1.0 max |
Mechanical Properties
| Material | Form and Condition | Tensile Strength | Yield Strength | Elongation % | Hardness, HB | ||
| ksi | MPa | ksi | MPa | ||||
| Alloy 601 Bar | Bar Annealed | 80-115 | 550-790 | 30-60 | 205-415 | 70-40 | 60-80 |
| Alloy 601 Sheet | Sheet Annealed | 85-100 | 585-690 | 30-50 | 205-345 | 55-35 | 65-80 |
| Alloy 601 Plate | Plate Annealed | 80-100 | 550-690 | 30-45 | 205-310 | 65-45 | 60-75 |
Industrial Applications
Aerospace & Defense
Combustor liners, afterburner components, exhaust ducts
Rocket engine thrust chambers, heat shields
Thermal Processing & Industrial Furnaces
Radiant tubes, muffles, roller hearths
Heat treatment baskets, furnace baffles
Chemical & Petrochemical Processing
Reactor vessels, catalyst support grids
Flue gas desulfurization (FGD) systems
Power Generation
Combustion cans, transition ducts
Heat recovery steam generators (HRSGs)
Lork Group is a premier global supplier of AMS 5870 certified Inconel 601 nickel sheets, strips, and plates, providing high-performance solutions for extreme temperature and corrosive environments. Our UNS N06601 alloy products meet the most demanding aerospace, industrial furnace, and chemical processing applications.
Product Specifications:
Thickness: 0.5mm to 50mm (custom sizes available)
Width: Up to 1500mm standard
Surface: Mill finish, pickled, or polished
Certifications: AMS 5870, EN 10088, ASTM B168
Request Your Competitive Quote Today!
Contact Lork Group for:
✓ Current Inconel 601 sheet inventory
✓ Custom cutting and forming services
✓ Complete material certifications
✓ Technical consultation for your application
