What is the microstructure of AISI 304L Bar?

As a supplier of AISI 304L bars, I've had the privilege of delving deep into the world of stainless - steel materials. One of the most frequently asked questions I encounter is about the microstructure of AISI 304L bar. Understanding the microstructure is crucial as it directly influences the mechanical, physical, and chemical properties of the material.

1. Introduction to AISI 304L Bar

AISI 304L is a low - carbon variation of the widely used AISI 304 stainless steel. The “L” in 304L stands for “low carbon,” which typically contains a maximum of 0.03% carbon. This low - carbon content is designed to prevent the formation of chromium carbides during welding or high - temperature processing, thus maintaining the corrosion resistance of the material.

AISI 304L bars are commonly used in various industries, including food processing, chemical, architectural, and medical. Their excellent corrosion resistance, formability, and weldability make them a popular choice for applications where durability and aesthetic appeal are required.

2. Microstructure of AISI 304L Bar

2.1 Austenitic Structure

The primary microstructure of AISI 304L bar is austenitic. Austenite is a face - centered cubic (FCC) crystal structure. In the case of AISI 304L, the austenitic phase is stabilized by the presence of nickel (usually around 8 - 12%) and manganese. The austenitic structure gives AISI 304L its excellent ductility, toughness, and formability.

Under normal conditions, the austenite in AISI 304L is non - magnetic. This non - magnetic property is often utilized in applications where magnetic interference needs to be avoided, such as in electronic equipment or magnetic resonance imaging (MRI) facilities.

2.2 Grain Structure

The grain structure of AISI 304L bar is another important aspect of its microstructure. The grain size can vary depending on the manufacturing process, heat treatment, and cold working. A fine - grained structure generally results in better mechanical properties, such as higher strength and improved fatigue resistance.

During the hot - rolling or forging process, the grains are deformed and elongated. Subsequent heat treatment can be used to recrystallize the grains, resulting in a more uniform and refined grain structure. Cold working, on the other hand, can increase the dislocation density within the grains, leading to work hardening and an increase in strength.

2.3 Inclusions

Inclusions are non - metallic particles that are present in the steel matrix. In AISI 304L bars, common inclusions include oxides, sulfides, and silicates. These inclusions can have a significant impact on the properties of the material.

Large or hard inclusions can act as stress concentrators, reducing the ductility and toughness of the material. They can also affect the corrosion resistance of AISI 304L by providing sites for preferential corrosion. Therefore, efforts are made during the steelmaking process to minimize the size and quantity of inclusions.

3. Influence of Microstructure on Properties

3.1 Corrosion Resistance

The austenitic microstructure of AISI 304L is responsible for its excellent corrosion resistance. The chromium in the steel forms a passive oxide layer on the surface, which protects the underlying metal from further corrosion. The low - carbon content in 304L helps to prevent the formation of chromium carbides, which can deplete the chromium in the vicinity of the grain boundaries and lead to intergranular corrosion.

However, the presence of inclusions can still compromise the corrosion resistance. If the inclusions are not properly controlled, they can break the passive layer and initiate corrosion.

3.2 Mechanical Properties

The austenitic structure and grain size have a significant influence on the mechanical properties of AISI 304L bar. The ductility and formability of the material are due to the ability of the austenite to deform easily under stress. The fine - grained structure can enhance the strength and fatigue resistance of the bar.

Cold working can further increase the strength of AISI 304L bar through work hardening. However, excessive cold working can reduce the ductility of the material. Heat treatment can be used to restore the ductility by annealing the cold - worked material.

4. Comparison with Other Stainless Steel Bars

4.1 AISI 304 Bar

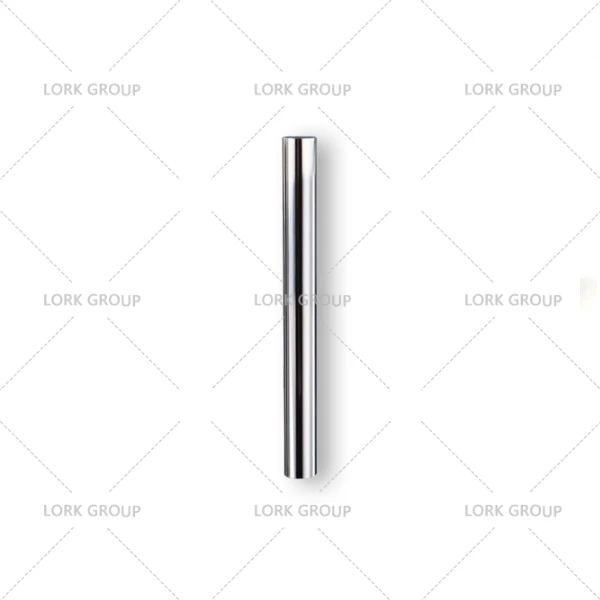

Compared to AISI 304 Bar, AISI 304L has a lower carbon content. This makes AISI 304L more resistant to intergranular corrosion, especially in applications where welding or high - temperature processing is involved. The microstructure of AISI 304 is also austenitic, but the higher carbon content in 304 can lead to the formation of chromium carbides under certain conditions.

4.2 AISI 316L Bar

AISI 316L Bar contains molybdenum (usually around 2 - 3%), which enhances its pitting and crevice corrosion resistance compared to AISI 304L. The microstructure of AISI 316L is also austenitic, but the presence of molybdenum can affect the grain growth and precipitation behavior during heat treatment.

4.3 AISI 310S Bar

AISI 310S Bar has a higher chromium and nickel content compared to AISI 304L. This gives AISI 310S better high - temperature oxidation resistance. The microstructure of AISI 310S is austenitic, and it can maintain its austenitic structure at higher temperatures than AISI 304L.

5. Quality Control and Microstructure Analysis

As a supplier of AISI 304L bars, we pay close attention to the microstructure of our products. We use various techniques to analyze the microstructure, including optical microscopy, scanning electron microscopy (SEM), and energy - dispersive X - ray spectroscopy (EDS).

Optical microscopy is a common method for observing the grain structure and inclusions in the steel. SEM can provide higher - resolution images of the microstructure, allowing us to detect small defects and inclusions. EDS is used to determine the chemical composition of the inclusions and the steel matrix.

By controlling the manufacturing process and conducting regular microstructure analysis, we ensure that our AISI 304L bars meet the highest quality standards.

6. Conclusion

The microstructure of AISI 304L bar, characterized by its austenitic structure, grain size, and inclusion content, plays a crucial role in determining its properties. Understanding the microstructure is essential for selecting the right material for specific applications and ensuring the quality of the final product.

If you are interested in purchasing AISI 304L bars or have any questions about their microstructure and properties, please feel free to contact us for further discussion and procurement negotiation. We are committed to providing you with high - quality AISI 304L bars that meet your specific requirements.

References

• ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High - Performance Alloys.
• Callister, W. D., & Rethwisch, D. G. (2016). Materials Science and Engineering: An Introduction. Wiley.
• Welding Handbook, Volume 1: Welding Science and Technology. American Welding Society.
