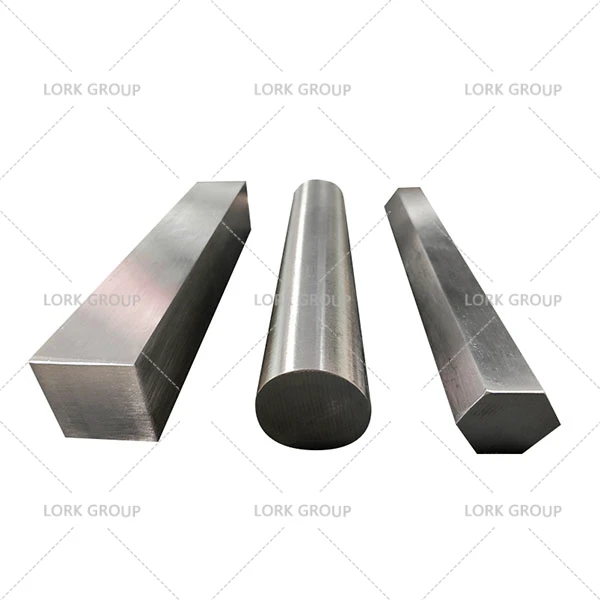

PH 15-7Mo Stainless Steel Bar (UNS S15700)
Lork Group as a professional trustworthy Precipitation Hardening Stainless Steel supplier and exporter, we produce PH 15-7mo bars & rods with high cost performance.
PH 15-7mo bars is a semi-austenitic precipitation hardening stainless steel. These rods combines moderate corrosion resistance with high strength and hardness at operating temperatures up to 900 degree F.
PH 15-7mo bar also known as UNS S15700 Round Bars,can withstand all kinds of cold forming and welding process under the condition of austenite.then through heat treatment can obtain the highest strength ,Under 550 ℃ with excellent high temperature strength.
PH 15-7mo bar electric welding property：The steel can adopt arc welding, resistance welding and gas shielded arc welding, gas shielded welding is the best. Welding is often done in materials solid solution treatment conditions,and do not need to preheat before welding.
When welding requires high strength, the 17-7 with lower content of δ- ferrite is chosen mostly,austenitic stainless steel welding wire can be used.
As a leading PH 15-7mo Stainless steel supplier in China, our products pass strict quality control and testing and ensure that the products meet standards and customer requirements. Lork Group manufactures and produces PH 15-7mo bar of various sizes.Contact us as your Stock Distributor and Supplier.
Specification
|
Dimensions |
EN, DIN, JIS, ASTM, BS, ASME, AISI |
|
Wire |
Thickness starting from 0.05mm |
|
Round bar size |
Diameter: 3-~800mm |
|
Hex Bar size |
2-100mm A/F |
|
Flat bar size |
Thickness: 2 -100mm / Width: 10 to 500mm |
|
Square bar size |
4 to 100mm |
|
Rectangular Bars Size |
33 x 30mm to 295 x 1066mm |
|
Hollow Bar |
32mm OD x 16mm ID to 250mm OD x 200mm ID |
|
Tolerance |
H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients' requirements |
|
Finish |
Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
Chemical Composition
|
Element |
Weight% |
|
C |
0.09 |
|
Mn |
1 |
|
Si |
1 |
|
P |
0.04 |
|
S |
0.03 |
|
Cr |
14-16 |
|
Ni |
6.50-7.75 |
|
Mo |
2-3 |
|
AI |
0.75-1.5 |
Mechanical Properties
|
Material |
Condition |
Thickness (in) |
Tensile Strength (ksi) |
Yield Strength (ksi) |
Elongation % |
Hardness |
|
Alloy 15-7 Mo |
Solution Treated |
<0.005 |
150 (max) |
65 (max) |
25 |
100 HB (max) |
|
Alloy 15-7Mo |
TH1050 (AMS 5520) |
0.010-0.020 |
190 |
170 |
4 |
40 HRC |
|
Alloy 15-7 Mo |
TH1050 (AMS 5520) |
0.020-0.1875 |
190 |
170 |
5 |
40 HRC |
|
Alloy 15-7 Mo |
TH1050 (AMS 5520) |
0.1875-0.500 |
190 |
170 |
6 |
40 HRC |
|
Alloy 15-7 Mo |
RH950 (AMS 5520) |
0.010-0.020 |
225 |
220 |
3 |
45 HRC |
|
Alloy 15-7 Mo |
RH950 (AMS 5520) |
0.020-0.1875 |
225 |
220 |
4 |
45 HRC |
|
Alloy 15-7 Mo |
RH950 (AMS 5520) |
0.1875-0.500 |
225 |
220 |
5 |
45 HRC |
|
Alloy 15-7 Mo |
Condition C |
– |
200 |
175 |
1 |
41 HRC |
|
Alloy 15-7 Mo |
Condition CH900 |
– |
240 |
230 |
1 |
46 HRC |
Applications
Applied to make aviation thin-wall structure components, all kinds of containers, pipes, spring, valve film, ship shaft,compressor plate, reactor components, as well as a variety of structure components of chemical equipment, etc.
PH15-7MO (632) is used in the manufacture of thin-walled structural parts for aviation, various vessels, pipes, springs, valves, ship axles, compressor plates, reactor parts, and a variety of chemical equipment and other structural parts.
Surface Treatment
