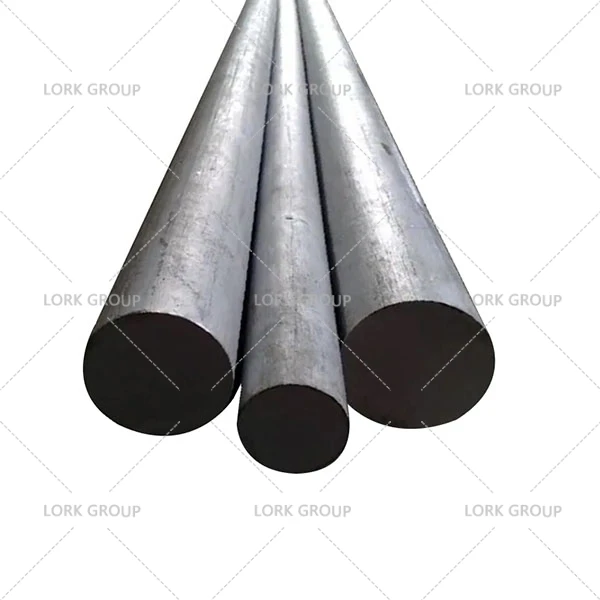

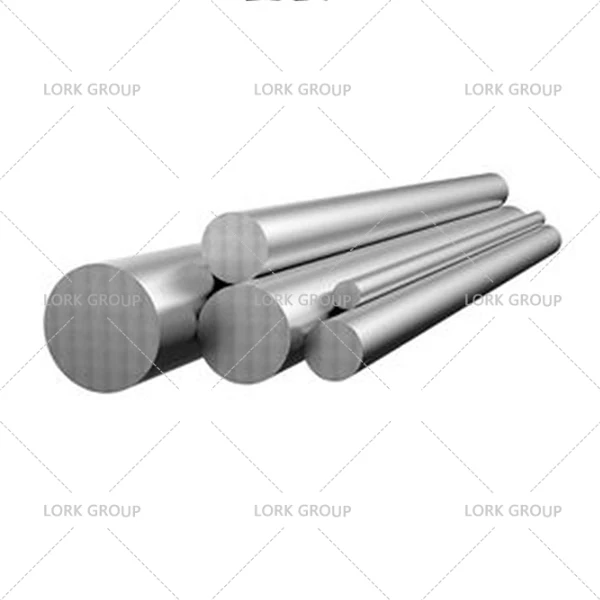

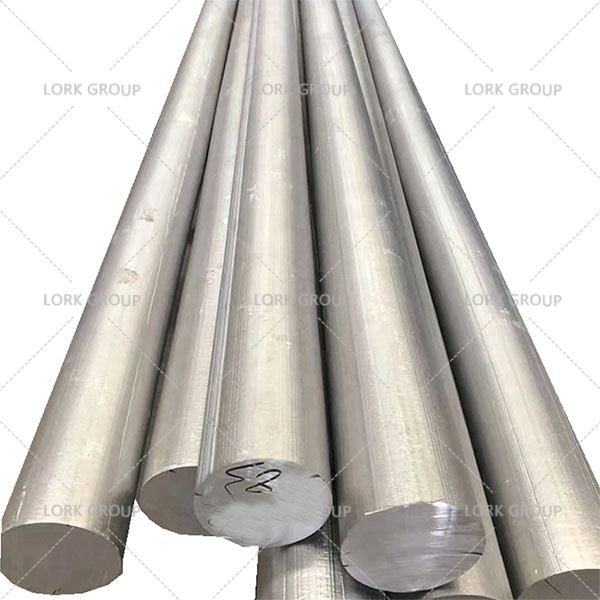

Incoloy 926 Nickel Alloy Bar (UNS N08926)

Incoloy 926 Nickel Alloy Bar (UNS N08926)

Incoloy 926 alloy (UNS N08926 / W.Nr 1.4529) is a super-austenitic stainless steel containing 6% molybdenum and enhanced by an addition of nitrogen.
Send Inquiry

Incoloy 926 alloy (UNS N08926 / W.Nr 1.4529) is a super-austenitic stainless steel containing 6% molybdenum and enhanced by an addition of nitrogen. The nickel and chromium contents of this alloy make it resistant to a wide range of corrosive environments.



Incoloy 926 alloy bar is especially resistant to non-oxidizing acids such as sulfuric and phosphoric. The high molybdenum content and nitrogen provide resistance to pitting and crevice corrosion, while copper enhances resistance to sulfuric acid. It replaces the conventional, austenitic stainless steels (AISI 316 and 317), where their capabilities are pushed to their performance limits. The alloy, therefore, falls into a "super austenitic stainless steel" category.



It can also represent a cost-effective alternative to the higher nickel alloys in some marine and chemical processing environments. One of the outstanding attributes of Incoloy 926 alloy bar is its resistance to environments containing chlorides or other halides. This alloy is especially suited to handle high-chloride environments such as brackish water, sea water, caustic chlorides and pulp mill bleach systems.



Chemical Composition



Element

Content (%)

Iron, Fe

41.69 - 50.35

Nickel, Ni

24-26

Chromium, Cr

19-21

Molybdenum, Mo

6-7

Manganese, Mn

≤2

Copper, Cu

0.5-1.5

Silicon, Si

≤0.5

Nitrogen, N

0.15-0.25

Phosphorous, P

≤0.03

Carbon, C

≤0.02

Sulfur, S

≤0.01



Physical Properties



Properties

Metric

Imperial

Density

8.03 g/cm³

0.29 lb/in³



Mechanical Properties



Properties

Metric

Imperial

Tensile strength

≥648 MPa

≥94000 psi

Yield strength

≥296 MPa

≥43000 psi

Modulus of elasticity

192 GPa

27800 ksi

Elongation at break

≥35 %

≥35 %

Rockwell B hardness

≤86

≤86



Incoloy 926 Alloy Bar Applications



  • Desalinization systems
  • Pulp and paper industry
  • Food processing equipment
  • Chemical processing plant
  • Offshore oil and gas production
  • Power generation
